A hinged system suitable for all kind of opening typologies

S60 is a Supreme insulated hinged system suitable for all kind of opening typologies. It offers high energy efficiency and flexibility for frames’ construction due to the following characteristics:

  • Variety of window design: flat, soft line, inclined, classic

  • Doors with concealed, barrel or external hinges

  • Windows with concealed sash

  • Ideal for window wall constructions

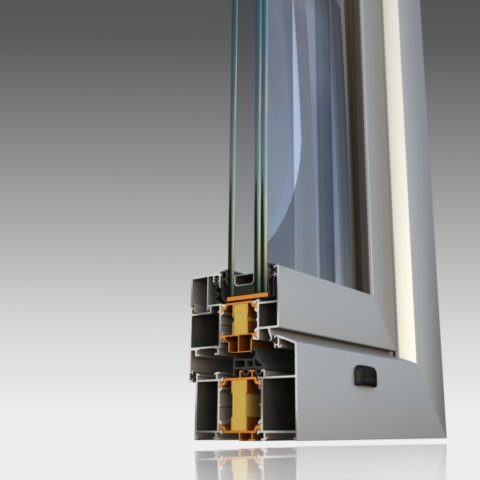

  • High thermal insulation thanks to polyamides of 38mm and wide polyurethane bars internally fitted, resulting to an excellent Uf value up to 0,98 W/m2K.

Frame depth 76,5 mm
Sash depth 84 mm
Minimum visible width 137 mm
Minimum visible width (Τ-profile) 70 mm
Sash mechanism weight limit up to 130 Kg
Glass thickness up to 62 mm
Cross section thickness 1,4-2,0
Thermal Transmission - EN ISO 10077-2 Uf ≥ 0,98 W/m2K
