For minimal recommendations glass surfaces with minimal visible aluminum frame

Alumil's sliding thermal insulated system S650 is the ideal solution for wide spans with extensive glazing surfaces that offers elegant constructions with high functionality, performances and minimal architectural design. Technical characteristics

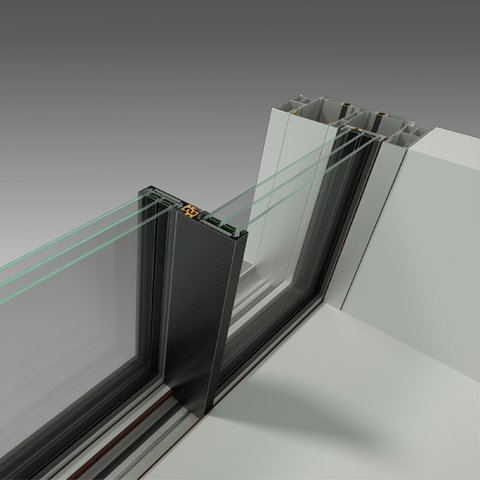

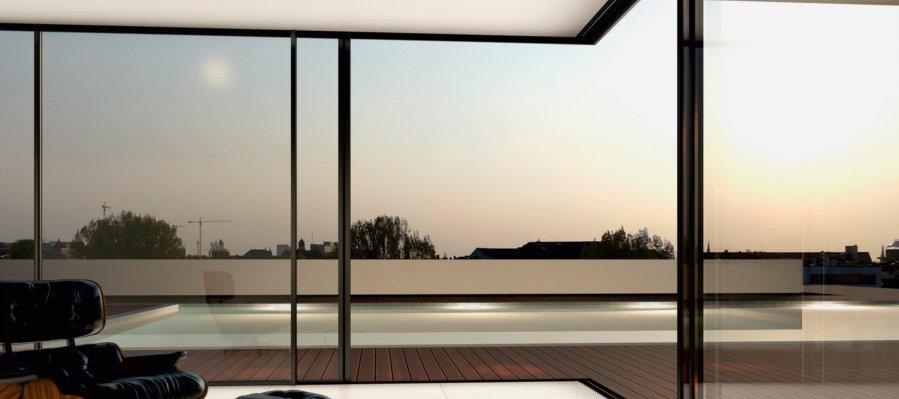

  • All the aluminum profiles are totally concealed in wall maximizing natural lighting in the buildings.

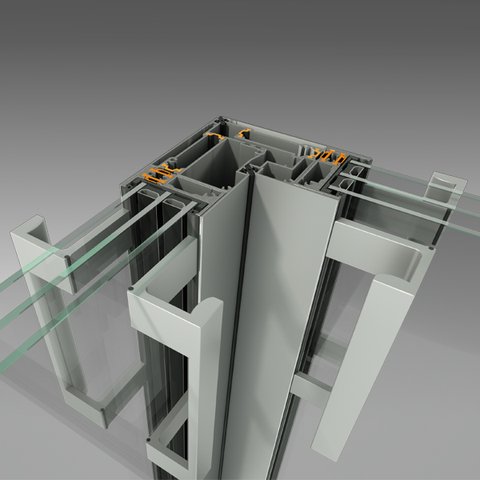

  • Only 25 mm visible aluminium face width at the interlocking profile.

  • Special anti-distortion fiberglass reinforced polyamides in sash profile for avoiding possible malfunctions due to high temperature differences.

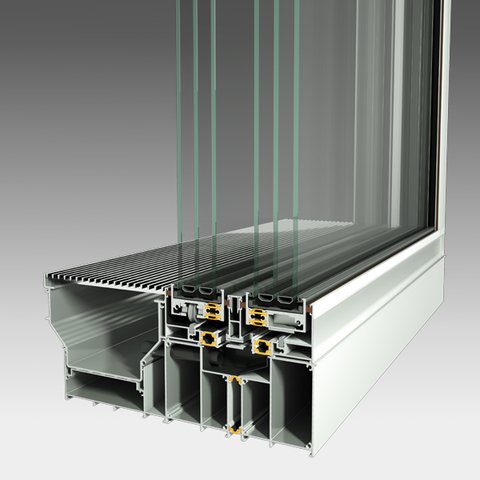

  • Extra concealed profiles available for water drainage.

  • Two types of rollers for smooth sliding & maximum functionality with high tolerance in corrosion.

  • Easy installation / removal of the sash in case of maintenance or replacement.

  • Special Profiles for the implementation of multi-sash typologies.

Frame heigh 59 mm
Frame width 164 mm
Sash height 22 / 32 mm
Sash width 62 mm
Interlocking profile width 25 mm
Sash weight Up to 600 kg


Use of tempered glass is advised

45 mm
Insulation Polyamides, PVC
