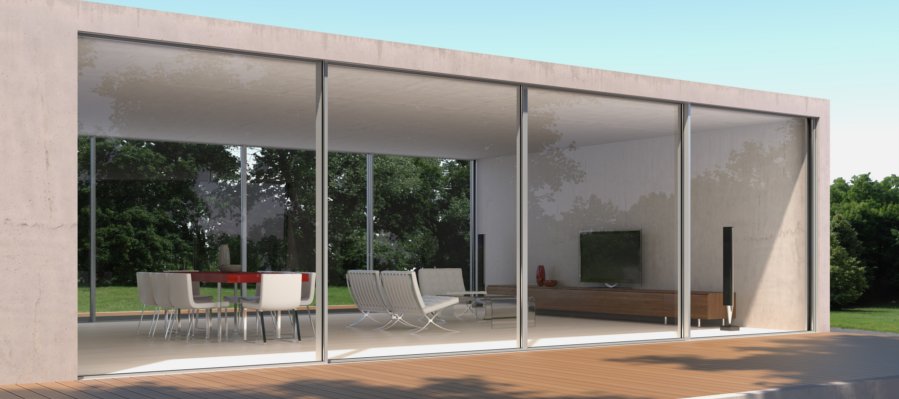

S600 is a high-end sliding system that has been created in order to make you feel like living outdoors.
The principal characteristic of the system is that both the fixed frame and the sliding sash are hidden in the walls, in the ceiling and in the floor, so that no aluminium frame is visible from inside or outside.
No limit to the width of the opening
The height of the door can be as high as the glass can stand the windloads (advisable 3,20m height).
Special locking devices, in the interlocking profile or in the concealed fixed frame, secure the opening.
Heavy duty, low weight twin rollers can carry frames of up to 300 kg.
Water drainage system can be very simple or more sophisticated, depending on the profiles used and the floor construction.
| Frame width | 76,5 mm |
|---|---|
| Sash width | 49 mm |
| Minimum visible width | 32 mm |
| Sash mechanism weight limit | 300 Kg |
| Maximum Glass thickness | 34 mm |
| Cross section thickness | up to 4,3 |
| Thermal Transmission - EN ISO 10077-2 | Uf ≥ 5,6 W/m2K |
