Τhe S700 is the premier retractable system for very large openings,with impressive out of competition characteristics.
Very small sheet height 84 mm and width 70mm
Central-profile hook superposition only 47mm width, for maximum visibility, and enhanced profile for potential construction of up to 3,00m
Hidden lower frame which is incorporated to the floor
Smart drainage system with excellent performance even under extreme weather conditions
Special accessory basin beneath the central profile-hooks superimposed slidings, keeping the waterproofing

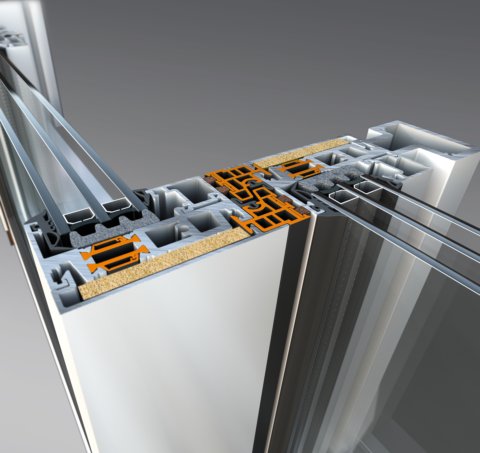

Special 24mm anti-distortion polyamides for avoiding the banana effect, due to high temperature differences between indoors and outdoors
Very high thermal insulation (Uf up to 1,3 W/m2K)
Can also be a classic lift & sliding with the same frame profile all around and with the same performances
| Minimum apparent construction height | 84 mm |
|---|---|
| Frame height | 61 mm |
| Frame width | 70 mm |
| Frame width | 73 mm |
| Sheet width | 85 mm |
| Glazing Thickness | from 24 to 68 mm |
| Insulation Type |
Polyamides 40mm width, |
| Thermal Transmission - EN ISO 10077-2 | Uf until 1,3 W/m2k |
