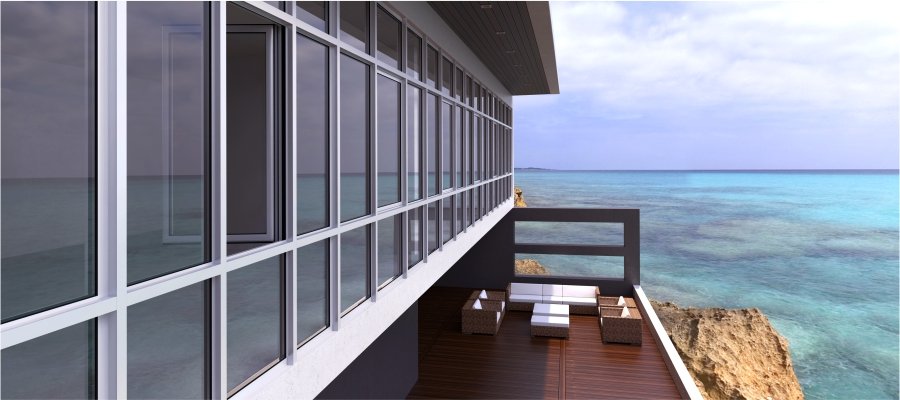

Supreme S77 system is Alumil's latest proposal for advanced insulating hinged systems which meets the high standards of private and public buildings in Western Europe, combining the demanding levels of thermal insulation, watertightness and sound insulation. The system includes a wide range of profiles with modern flat shape, as well as with Alumil’s characteristic curved shape. Furthermore, it provides the choice of using concealed sash and concealed fittings for windows and doors and also, of making constructions with totally aligned sash and frame profiles internally and externally for the entrance doors. It is the ideal solution for any kind of constructions that require strict standards for high performance and maximum safety. The system offers convenience and flexibility in the construction of well construction can be realized with either steel perimetrical mechanism or philosophy mechanism European Groove.
Available 77mm width frame and visibly and hidden leaves 85mm width.
High heat transfer coefficient Uf = 1,1 W / m2K thanks to the use of special glass reinforced polyamides width 40mm the frame and sash, sparkling central double extruded rubber foam insulation material under the glass and insulating Kooltherm bars.
High waterproofing level due to greater application surface (4mm) of the central elastic polyamide.
Enables construction of all typologies door window and entrance doors
| Minimum apparent construction height | 93 mm |
|---|---|
| Frame height | 61 mm |
| Frame width | 77 mm |
| Frame width | 73 mm |
| Sheet width | 85 mm |
| Glazing Thickness | From 24 to 68 mm |
| Insulation Type | Polyamides 40mm width, Kooltherm, foam insulating material |
| Thermal Transmission - EN ISO 10077-2 | Uf ≥ 1,1 W/m2K |
